Retaining Rings - Crescent

Retaining Rings -> Crescent

There are 23 products in the sub-categories of Retaining Rings - Crescent. Scroll down or follow the link to Retaining Rings - Crescent in the products table to see all these items combined into a handy table with filters.

Category Details

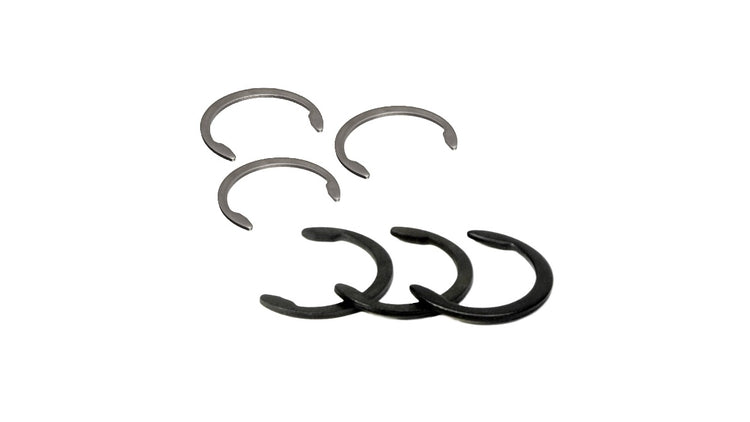

A selection of Crescent Retaining Rings. Variation of an E-Clip with an open face. Also known as a C-Clip.

  • Narrow section height provides good clearance capabilities.
  • Absence of teeth and deep set mean less thrust load ratings than e-clips.
  • For best results install using the recommended applicator tool.
Retaining Rings - Crescent

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Retaining Rings - Crescent category on the MBA Minibearings main store.
Groove Diameter (G) Shaft Diameter (S) Thickness (t) Clip OD in groove (C1) Clip OD Loose (D1) Groove Width (W) Indicative

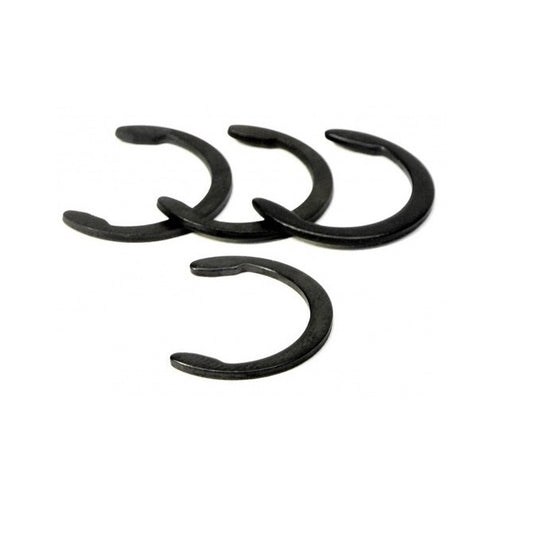

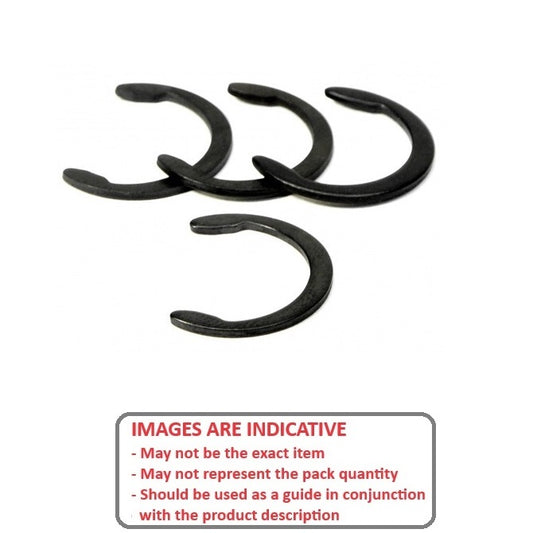

Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
2.30
mm

(Equiv. 0.091 in.)
Shaft Diameter (S)
3.00
mm

(Equiv. 0.118 in.)
Thickness (t)
0.4
mm

(Equiv. 0.016 in.)
Clip OD in groove (C1)
4.10
mm
Clip OD Loose (D1)
3.96
mm
Groove Width (W)
0.44
Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Deleted Item. Available while stocks last.
Part Number: CC-023-030-C (PK-50)
10 units (500 pcs) Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (500 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Groove Diameter (G) Shaft Diameter (S) Thickness (t) Clip OD in groove (C1) Indicative
Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
2.30
mm

(Equiv. 0.091 in.)
Shaft Diameter (S)
3.00
mm

(Equiv. 0.118 in.)
Thickness (t)
0.4
mm

(Equiv. 0.016 in.)
Clip OD in groove (C1)
4.10
mm
Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 3.96 mm    Groove Width (W): 0.44
Deleted Item. Available while stocks last.
Part Number: CC-023-030-C (PK-50)
10 units (500 pcs) Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (500 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
2.69
mm

(Equiv. 0.106 in.)
Shaft Diameter (S)
3.18
mm

(Equiv. 0.125 in.)
Thickness (t)
0.38
mm

(Equiv. 0.015 in.)
Clip OD in groove (C1)
4.57
mm
Clip OD Loose (D1)
4.19
mm
Groove Width (W)
0.46
Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 108505
Part Number: CC-027-032-C (PK-50)
16 units (800 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.77 AUD
$6.86 AUD $3.77 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 16 available can be backordered.
Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
2.69
mm

(Equiv. 0.106 in.)
Shaft Diameter (S)
3.18
mm

(Equiv. 0.125 in.)
Thickness (t)
0.38
mm

(Equiv. 0.015 in.)
Clip OD in groove (C1)
4.57
mm
Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 4.19 mm    Groove Width (W): 0.46
Additional stock available from USA subject to Prior Sale = 108505
Part Number: CC-027-032-C (PK-50)
16 units (800 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.77 AUD
$6.86 AUD $3.77 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

16 units (800 pcs) Available Now. Backorder if more than 16.
Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
3.43
mm

(Equiv. 0.135 in.)
Shaft Diameter (S)
3.96
mm

(Equiv. 0.156 in.)
Thickness (t)
0.38
mm

(Equiv. 0.015 in.)
Clip OD in groove (C1)
5.59
mm
Clip OD Loose (D1)
5.21
mm
Groove Width (W)
0.46
Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Part Number: CC-034-040-C (PK-10)
64 units (640 pcs) Available Now | Further orders can be expected around Sat, Mar 07, 2026
$1.68 AUD
$2.93 AUD $1.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 64 available can be backordered.
Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
3.43
mm

(Equiv. 0.135 in.)
Shaft Diameter (S)
3.96
mm

(Equiv. 0.156 in.)
Thickness (t)
0.38
mm

(Equiv. 0.015 in.)
Clip OD in groove (C1)
5.59
mm
Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 5.21 mm    Groove Width (W): 0.46
Part Number: CC-034-040-C (PK-10)
64 units (640 pcs) Available Now | Further orders can be expected around Sat, Mar 07, 2026
$1.68 AUD
$2.93 AUD $1.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

64 units (640 pcs) Available Now. Backorder if more than 64.
Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
4.00
mm

(Equiv. 0.157 in.)
Shaft Diameter (S)
5.00
mm

(Equiv. 0.197 in.)
Thickness (t)
0.6
mm

(Equiv. 0.024 in.)
Clip OD in groove (C1)
6.40
mm
Clip OD Loose (D1)
6.20
mm
Groove Width (W)
0.64
Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 8197
Part Number: CC-040-050-C (PK-10)
56 units (560 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.59 AUD
$2.77 AUD $1.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 56 available can be backordered.
Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
4.00
mm

(Equiv. 0.157 in.)
Shaft Diameter (S)
5.00
mm

(Equiv. 0.197 in.)
Thickness (t)
0.6
mm

(Equiv. 0.024 in.)
Clip OD in groove (C1)
6.40
mm
Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 6.20 mm    Groove Width (W): 0.64
Additional stock available from USA subject to Prior Sale = 8197
Part Number: CC-040-050-C (PK-10)
56 units (560 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.59 AUD
$2.77 AUD $1.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

56 units (560 pcs) Available Now. Backorder if more than 56.
Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
4.19
mm

(Equiv. 0.165 in.)
Shaft Diameter (S)
4.78
mm

(Equiv. 0.188 in.)
Thickness (t)
0.38
mm

(Equiv. 0.015 in.)
Clip OD in groove (C1)
6.35
mm
Clip OD Loose (D1)
6.20
mm
Groove Width (W)
0.46
Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 14369
Part Number: CC-042-048-C (PK-10)
88 units (880 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.77 AUD
$3.11 AUD $1.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 88 available can be backordered.
Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
4.19
mm

(Equiv. 0.165 in.)
Shaft Diameter (S)
4.78
mm

(Equiv. 0.188 in.)
Thickness (t)
0.38
mm

(Equiv. 0.015 in.)
Clip OD in groove (C1)
6.35
mm
Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 6.20 mm    Groove Width (W): 0.46
Additional stock available from USA subject to Prior Sale = 14369
Part Number: CC-042-048-C (PK-10)
88 units (880 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.77 AUD
$3.11 AUD $1.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

88 units (880 pcs) Available Now. Backorder if more than 88.
Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
4.90
mm

(Equiv. 0.193 in.)
Shaft Diameter (S)
5.56
mm

(Equiv. 0.219 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
7.37
mm
Clip OD Loose (D1)
6.99
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Part Number: CC-049-056-C (PK-50)
1 pack (50 pcs) Available Now | Further orders can be expected around Sat, Mar 07, 2026
$3.50 AUD
$6.35 AUD $3.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
4.90
mm

(Equiv. 0.193 in.)
Shaft Diameter (S)
5.56
mm

(Equiv. 0.219 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
7.37
mm
Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 6.99 mm    Groove Width (W): 0.74
Part Number: CC-049-056-C (PK-50)
1 pack (50 pcs) Available Now | Further orders can be expected around Sat, Mar 07, 2026
$3.50 AUD
$6.35 AUD $3.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (50 pcs) Available Now. Backorder if more than 1.
Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
5.28
mm

(Equiv. 0.208 in.)
Shaft Diameter (S)
5.99
mm

(Equiv. 0.236 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
7.87
mm
Clip OD Loose (D1)
7.49
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 3325
Part Number: CC-053-060-C (PK-10)
90 units (900 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 90 available can be backordered.
Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
5.28
mm

(Equiv. 0.208 in.)
Shaft Diameter (S)
5.99
mm

(Equiv. 0.236 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
7.87
mm
Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 7.49 mm    Groove Width (W): 0.74
Additional stock available from USA subject to Prior Sale = 3325
Part Number: CC-053-060-C (PK-10)
90 units (900 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

90 units (900 pcs) Available Now. Backorder if more than 90.
Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
5.59
mm

(Equiv. 0.22 in.)
Shaft Diameter (S)
6.35
mm

(Equiv. 0.25 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
8.38
mm
Clip OD Loose (D1)
7.90
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 14584
Part Number: CC-056-064-C (PK-50)
4 units (200 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.23 AUD
$7.77 AUD $4.23 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
5.59
mm

(Equiv. 0.22 in.)
Shaft Diameter (S)
6.35
mm

(Equiv. 0.25 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
8.38
mm
Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 7.90 mm    Groove Width (W): 0.74
Additional stock available from USA subject to Prior Sale = 14584
Part Number: CC-056-064-C (PK-50)
4 units (200 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.23 AUD
$7.77 AUD $4.23 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

4 units (200 pcs) Available Now. Backorder if more than 4.
Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
6.00
mm

(Equiv. 0.236 in.)
Shaft Diameter (S)
7.00
mm

(Equiv. 0.276 in.)
Thickness (t)
0.8
mm

(Equiv. 0.031 in.)
Clip OD in groove (C1)
8.80
mm
Clip OD Loose (D1)
8.60
mm
Groove Width (W)
0.85
Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 6139
Part Number: CC-060-070-C (PK-10)
48 units (480 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.95 AUD
$2.95 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 48 available can be backordered.
Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
6.00
mm

(Equiv. 0.236 in.)
Shaft Diameter (S)
7.00
mm

(Equiv. 0.276 in.)
Thickness (t)
0.8
mm

(Equiv. 0.031 in.)
Clip OD in groove (C1)
8.80
mm
Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 8.60 mm    Groove Width (W): 0.85
Additional stock available from USA subject to Prior Sale = 6139
Part Number: CC-060-070-C (PK-10)
48 units (480 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.95 AUD
$2.95 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

48 units (480 pcs) Available Now. Backorder if more than 48.
Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
6.27
mm

(Equiv. 0.247 in.)
Shaft Diameter (S)
7.14
mm

(Equiv. 0.281 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
9.14
mm
Clip OD Loose (D1)
8.79
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Part Number: CC-063-071-C (PK-10)
86 units (860 pcs) Available Now | Further orders can be expected around Sat, Mar 07, 2026
$2.05 AUD
$3.57 AUD $2.05 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 86 available can be backordered.
Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
6.27
mm

(Equiv. 0.247 in.)
Shaft Diameter (S)
7.14
mm

(Equiv. 0.281 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
9.14
mm
Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 8.79 mm    Groove Width (W): 0.74
Part Number: CC-063-071-C (PK-10)
86 units (860 pcs) Available Now | Further orders can be expected around Sat, Mar 07, 2026
$2.05 AUD
$3.57 AUD $2.05 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

86 units (860 pcs) Available Now. Backorder if more than 86.
Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
7.01
mm

(Equiv. 0.276 in.)
Shaft Diameter (S)
7.93
mm

(Equiv. 0.312 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
9.91
mm
Clip OD Loose (D1)
9.55
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 12979
Part Number: CC-070-079-C (PK-10)
92 units (920 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 92 available can be backordered.
Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
7.01
mm

(Equiv. 0.276 in.)
Shaft Diameter (S)
7.93
mm

(Equiv. 0.312 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
9.91
mm
Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 9.55 mm    Groove Width (W): 0.74
Additional stock available from USA subject to Prior Sale = 12979
Part Number: CC-070-079-C (PK-10)
92 units (920 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

92 units (920 pcs) Available Now. Backorder if more than 92.
Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
8.51
mm

(Equiv. 0.335 in.)
Shaft Diameter (S)
9.53
mm

(Equiv. 0.375 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
11.94
mm
Clip OD Loose (D1)
11.38
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 19244
Part Number: CC-085-095-C (PK-10)
147 units (1470 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 147 available can be backordered.
Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
8.51
mm

(Equiv. 0.335 in.)
Shaft Diameter (S)
9.53
mm

(Equiv. 0.375 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
11.94
mm
Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 11.38 mm    Groove Width (W): 0.74
Additional stock available from USA subject to Prior Sale = 19244
Part Number: CC-085-095-C (PK-10)
147 units (1470 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

147 units (1470 pcs) Available Now. Backorder if more than 147.
Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
9.00
mm

(Equiv. 0.354 in.)
Shaft Diameter (S)
10.00
mm

(Equiv. 0.394 in.)
Thickness (t)
0.9
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
12.40
mm
Clip OD Loose (D1)
12.00
mm
Groove Width (W)
0.95
Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 3000
Part Number: CC-090-100-C (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$9.05 AUD
$9.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
9.00
mm

(Equiv. 0.354 in.)
Shaft Diameter (S)
10.00
mm

(Equiv. 0.394 in.)
Thickness (t)
0.9
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
12.40
mm
Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 12.00 mm    Groove Width (W): 0.95
Additional stock available from USA subject to Prior Sale = 3000
Part Number: CC-090-100-C (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$9.05 AUD
$9.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
9.25
mm

(Equiv. 0.364 in.)
Shaft Diameter (S)
10.31
mm

(Equiv. 0.406 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
12.70
mm
Clip OD Loose (D1)
12.34
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 2074
Part Number: CC-093-103-C (PK-10)
62 units (620 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.14 AUD
$4.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 62 available can be backordered.
Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
9.25
mm

(Equiv. 0.364 in.)
Shaft Diameter (S)
10.31
mm

(Equiv. 0.406 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
12.70
mm
Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 12.34 mm    Groove Width (W): 0.74
Additional stock available from USA subject to Prior Sale = 2074
Part Number: CC-093-103-C (PK-10)
62 units (620 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.14 AUD
$4.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

62 units (620 pcs) Available Now. Backorder if more than 62.
Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
9.98
mm

(Equiv. 0.393 in.)
Shaft Diameter (S)
11.13
mm

(Equiv. 0.438 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
13.46
mm
Clip OD Loose (D1)
13.13
mm
Groove Width (W)
0.74
Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 3571
Part Number: CC-100-111-C (PK-20)
40 units (800 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.59 AUD
$4.59 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 40 available can be backordered.
Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
9.98
mm

(Equiv. 0.393 in.)
Shaft Diameter (S)
11.13
mm

(Equiv. 0.438 in.)
Thickness (t)
0.64
mm

(Equiv. 0.025 in.)
Clip OD in groove (C1)
13.46
mm
Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 13.13 mm    Groove Width (W): 0.74
Additional stock available from USA subject to Prior Sale = 3571
Part Number: CC-100-111-C (PK-20)
40 units (800 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.59 AUD
$4.59 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (800 pcs) Available Now. Backorder if more than 40.
Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
11.43
mm

(Equiv. 0.45 in.)
Shaft Diameter (S)
12.70
mm

(Equiv. 0.5 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
15.24
mm
Clip OD Loose (D1)
14.76
mm
Groove Width (W)
0.99
Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 6718
Part Number: CC-114-127-C (PK-10)
55 units (550 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.68 AUD
$4.77 AUD $2.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 55 available can be backordered.
Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
11.43
mm

(Equiv. 0.45 in.)
Shaft Diameter (S)
12.70
mm

(Equiv. 0.5 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
15.24
mm
Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 14.76 mm    Groove Width (W): 0.99
Additional stock available from USA subject to Prior Sale = 6718
Part Number: CC-114-127-C (PK-10)
55 units (550 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.68 AUD
$4.77 AUD $2.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

55 units (550 pcs) Available Now. Backorder if more than 55.
Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
12.88
mm

(Equiv. 0.507 in.)
Shaft Diameter (S)
14.28
mm

(Equiv. 0.562 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
17.02
mm
Clip OD Loose (D1)
16.59
mm
Groove Width (W)
0.99
Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 516
Part Number: CC-129-143-C (PK-10)
84 units (840 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.59 AUD
$4.61 AUD $2.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 84 available can be backordered.
Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
12.88
mm

(Equiv. 0.507 in.)
Shaft Diameter (S)
14.28
mm

(Equiv. 0.562 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
17.02
mm
Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 16.59 mm    Groove Width (W): 0.99
Additional stock available from USA subject to Prior Sale = 516
Part Number: CC-129-143-C (PK-10)
84 units (840 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.59 AUD
$4.61 AUD $2.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

84 units (840 pcs) Available Now. Backorder if more than 84.
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
14.30
mm

(Equiv. 0.563 in.)
Shaft Diameter (S)
15.88
mm

(Equiv. 0.625 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
18.80
mm
Clip OD Loose (D1)
18.16
mm
Groove Width (W)
0.99
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 4692
Part Number: CC-143-159-C (PK-10)
87 units (870 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.86 AUD
$5.21 AUD $2.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 87 available can be backordered.
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
14.30
mm

(Equiv. 0.563 in.)
Shaft Diameter (S)
15.88
mm

(Equiv. 0.625 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
18.80
mm
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 18.16 mm    Groove Width (W): 0.99
Additional stock available from USA subject to Prior Sale = 4692
Part Number: CC-143-159-C (PK-10)
87 units (870 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.86 AUD
$5.21 AUD $2.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

87 units (870 pcs) Available Now. Backorder if more than 87.
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17 Ring
Groove Diameter (G)
14.30
mm

(Equiv. 0.563 in.)
Shaft Diameter (S)
15.88
mm

(Equiv. 0.625 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
18.80
mm
Clip OD Loose (D1)
18.16
mm
Groove Width (W)
0.99
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17
Material: Stainless Steel Grade PH15-7-17
Additional stock available from USA subject to Prior Sale = 8375
Part Number: CC-143-159-SS (PK-5)
49 units (245 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$6.41 AUD
$6.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 49 available can be backordered.
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17 Ring
Groove Diameter (G)
14.30
mm

(Equiv. 0.563 in.)
Shaft Diameter (S)
15.88
mm

(Equiv. 0.625 in.)
Thickness (t)
0.89
mm

(Equiv. 0.035 in.)
Clip OD in groove (C1)
18.80
mm
Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17
Material: Stainless Steel Grade PH15-7-17    Clip OD Loose (D1): 18.16 mm    Groove Width (W): 0.99
Additional stock available from USA subject to Prior Sale = 8375
Part Number: CC-143-159-SS (PK-5)
49 units (245 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$6.41 AUD
$6.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

49 units (245 pcs) Available Now. Backorder if more than 49.
Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
15.72
mm

(Equiv. 0.619 in.)
Shaft Diameter (S)
17.48
mm

(Equiv. 0.688 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
20.32
mm
Clip OD Loose (D1)
19.91
mm
Groove Width (W)
1.17
Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 850
Part Number: CC-157-175-C (PK-5)
174 units (870 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.59 AUD
$2.87 AUD $1.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 174 available can be backordered.
Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
15.72
mm

(Equiv. 0.619 in.)
Shaft Diameter (S)
17.48
mm

(Equiv. 0.688 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
20.32
mm
Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 19.91 mm    Groove Width (W): 1.17
Additional stock available from USA subject to Prior Sale = 850
Part Number: CC-157-175-C (PK-5)
174 units (870 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.59 AUD
$2.87 AUD $1.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

174 units (870 pcs) Available Now. Backorder if more than 174.
Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
17.17
mm

(Equiv. 0.676 in.)
Shaft Diameter (S)
19.05
mm

(Equiv. 0.75 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
22.10
mm
Clip OD Loose (D1)
21.46
mm
Groove Width (W)
1.17
Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 5580
Part Number: CC-172-191-C (PK-5)
178 units (890 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.68 AUD
$2.93 AUD $1.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 178 available can be backordered.
Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
17.17
mm

(Equiv. 0.676 in.)
Shaft Diameter (S)
19.05
mm

(Equiv. 0.75 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
22.10
mm
Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 21.46 mm    Groove Width (W): 1.17
Additional stock available from USA subject to Prior Sale = 5580
Part Number: CC-172-191-C (PK-5)
178 units (890 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.68 AUD
$2.93 AUD $1.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

178 units (890 pcs) Available Now. Backorder if more than 178.
Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
18.59
mm

(Equiv. 0.732 in.)
Shaft Diameter (S)
20.63
mm

(Equiv. 0.812 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
23.88
mm
Clip OD Loose (D1)
23.24
mm
Groove Width (W)
1.17
Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Part Number: CC-186-206-C (PK-5)
74 units (370 pcs) Available Now | Further orders can be expected around Thu, Jan 29, 2026
$2.41 AUD
$4.35 AUD $2.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 74 available can be backordered.
Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
18.59
mm

(Equiv. 0.732 in.)
Shaft Diameter (S)
20.63
mm

(Equiv. 0.812 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
23.88
mm
Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 23.24 mm    Groove Width (W): 1.17
Part Number: CC-186-206-C (PK-5)
74 units (370 pcs) Available Now | Further orders can be expected around Thu, Jan 29, 2026
$2.41 AUD
$4.35 AUD $2.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

74 units (370 pcs) Available Now. Backorder if more than 74.
Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
20.04
mm

(Equiv. 0.789 in.)
Shaft Diameter (S)
22.23
mm

(Equiv. 0.875 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
25.65
mm
Clip OD Loose (D1)
25.17
mm
Groove Width (W)
1.17
Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Additional stock available from USA subject to Prior Sale = 1877
Part Number: CC-200-222-C (PK-5)
200 units (1000 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.41 AUD
$4.36 AUD $2.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 200 available can be backordered.
Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish
Groove Diameter (G)
20.04
mm

(Equiv. 0.789 in.)
Shaft Diameter (S)
22.23
mm

(Equiv. 0.875 in.)
Thickness (t)
1.07
mm

(Equiv. 0.042 in.)
Clip OD in groove (C1)
25.65
mm
Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clip OD Loose (D1): 25.17 mm    Groove Width (W): 1.17
Additional stock available from USA subject to Prior Sale = 1877
Part Number: CC-200-222-C (PK-5)
200 units (1000 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$2.41 AUD
$4.36 AUD $2.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

200 units (1000 pcs) Available Now. Backorder if more than 200.
